Ergo Lite 2 T 16/18 wheelchair
New
Ergo Lite 2 T 16/18 wheelchair
£465.99

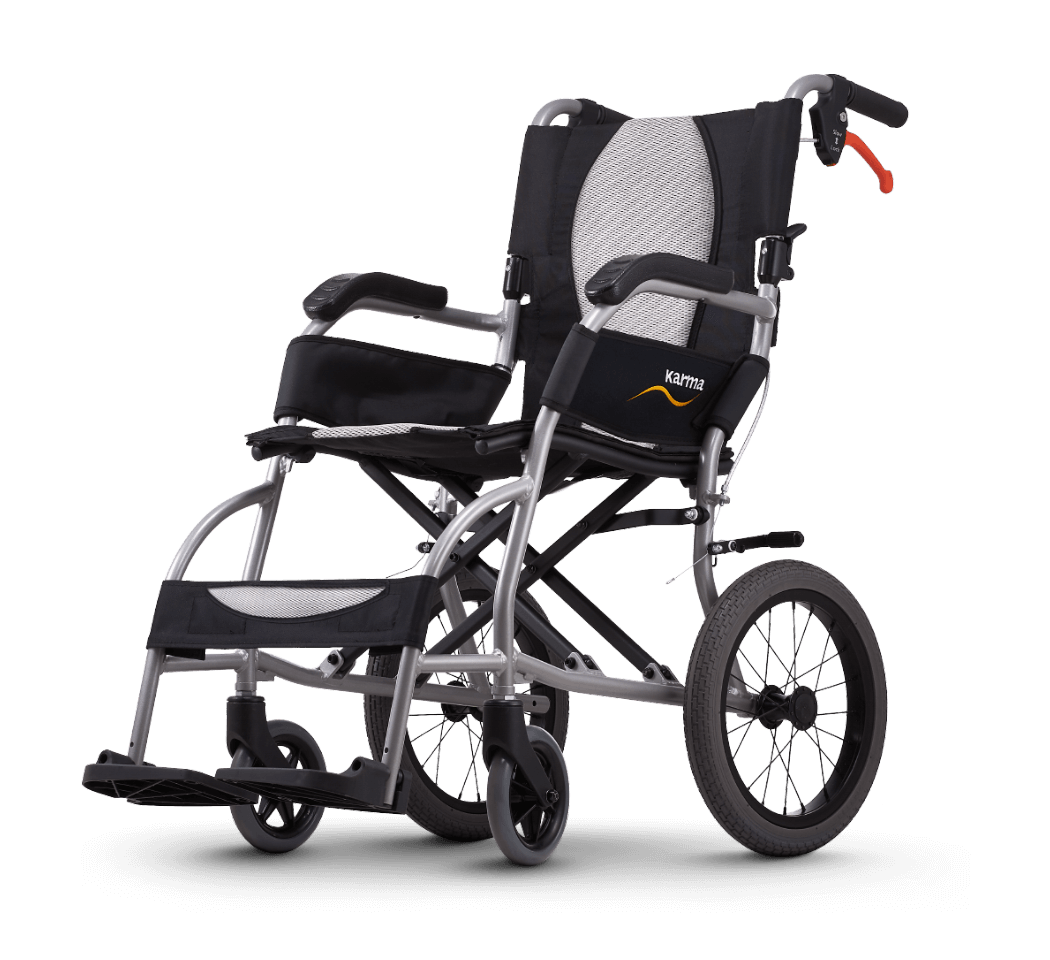

Ergo Lite 2
The Ergo Lite 2 is an ultralight aluminium wheelchair with the ergonomic features of the Ergo Lite. Transfer easily in and out of the wheelchair with the detachable swing-away footrest.
You can choose between transit wheelchair with 14″ rear wheel or self-propelled wheelchair with 20″ quick-release rear wheel.
Ultralight and Sturdy
We strive to make the carer’s life easier. Weighing at a mere 9.2 kg for the transit wheelchair, the ultralight weight lowers the risk for back injury by reducing the physical effort required to lift it. In addition, the rear wheels and the footrests of the self-propelled wheelchair are detachable, reducing the weight to 6 kg.
S-Ergo Seating System
The S-Ergo Seating is a patented seating system which; helps promote pressure relief and helps to stop the user sliding forward in the seat. This makes the wheelchair comfortable and helps maintain good posture.
Detachable Swing-Away Footrest
Allows for easy transfer, on and off the wheelchair and detaches with no tools required.

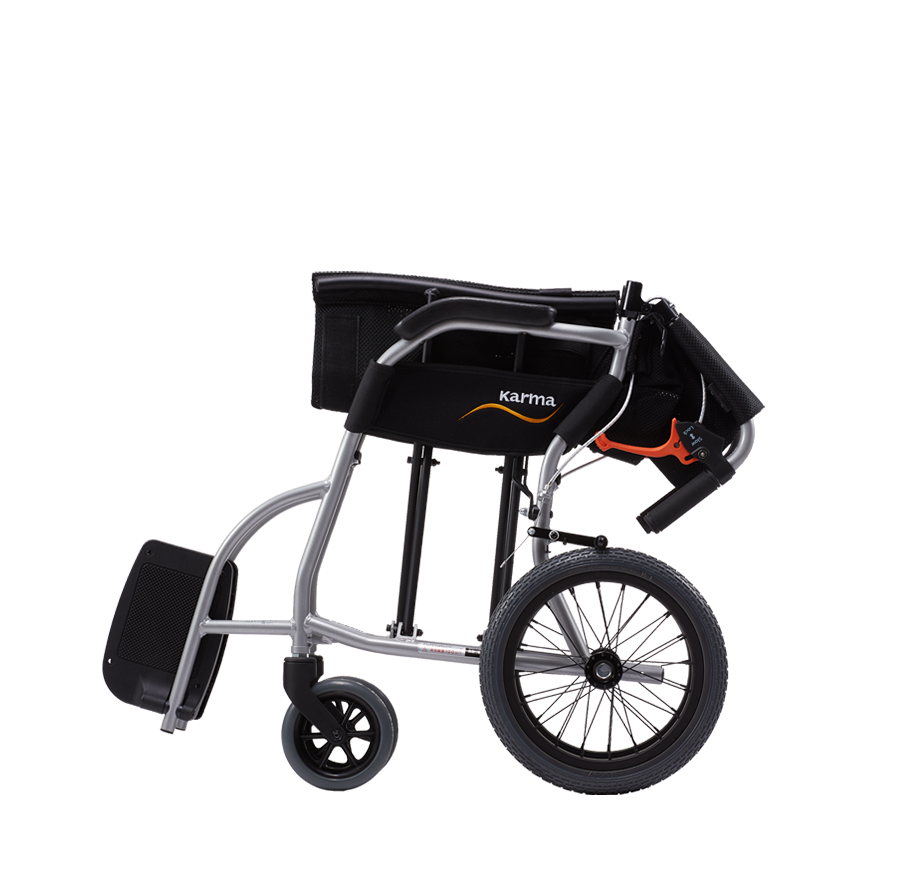

Compact and Portable
The Ergo Lite 2 weighs only 6 kg after removing the rear wheels and footrests. This makes storage and transport much easier.

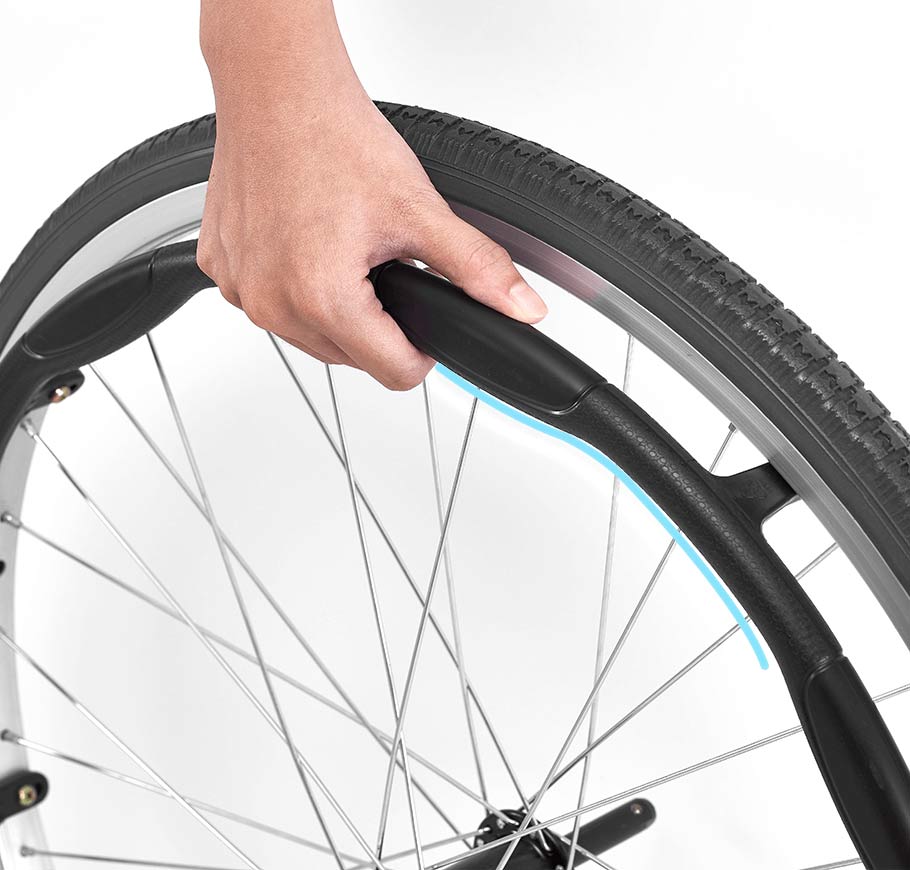

Ergo Handrim
The new ergonomic handrim provides comfort and greater mobility for better propulsion and efficient braking.
AEGIS Microbe Shield
The upholstery is treated with AEGIS Microbe Shield, which is approved by the FDA, EPA, EU, etc. The anti-microbial upholstery inhibits bacterial and fungal growth, eliminates odour and is designed for easy cleaning. It is a shield for your health.
Description
Specification
| Product Model | Ergo Lite 2 (KM-2512) | |||
| Nominal Seat Width (inch) | 16 | 18 | 16 | 18 |
| Caster x Rear wheel size (in) | 6 x 14 | 6 x 20 | ||
| Maximum user weight (kg) | 100 | 100 | 100 | 100 |
| Overall length with legrest (mm) | 935 | 935 | 930 | 930 |
| Overall Width (mm) | 570 | 615 | 595 | 645 |
| Overall Height (mm) | 900 | 900 | 900 | 900 |
| Folded Length (mm) | 635 | 635 | 695 | 695 |
| Folded Width (mm) | 280 | 295 | 280 | 295 |
| Folded Height (mm) | 700 | 710 | 700 | 710 |
| Total Mass (kg) | 9.2 | 9.3 | 10.7 | 10.9 |
| Mass of Heaviest Part (kg) | 8.1 | 8.3 | 6.7(20Q) 9.7(20F) |
6.7(20Q) 9.8(20F) |
| Handrim diameter (mm) | N/A | N/A | 430 | 430 |
| Horizontal location of axle (mm) | 20 | 20 | 5 | 5 |
| Minimum turning radius (mm) | 810 | 838 | 820 | 840 |
| Minimum turning radius without user (mm) | 725 | 750 | 735 | 760 |
| Pivot width (mm) | 1140 | 1160 | 1150 | 1180 |
| Static stability downhill (X°) | 18.1 | 17.9 | ||
| Static stability uphill (X°) | 10.8 | 10.1 | ||
| Static stability uphill with anti-tippers (X°) | 11.9 | 11.4 | ||
| Static stability sideways (X°) | 13.3 | 14.3 | ||
| Seat plane angle (X°) | 5 | |||
| Effective Seat Depth (mm) | 430 | 430 | 430 | 430 |
| Nominal Seat Depth (mm) | 420 | 420 | 420 | 420 |
| Effective Seat Width (mm) | 400 | 450 | 400 | 450 |
| Seat Surface Height at Front Edge (mm) | 480 | 480 | 480 | 480 |
| Backrest angle (X°) | 11 | 11 | 11 | 11 |
| Seat to Backrest Angle (X°) | 96 | 96 | 96 | 96 |
| Backrest Height (mm) | 420 | 420 | 420 | 420 |
| Leg to Seat Surface Angle (X°) | 102 | 102 | 102 | 102 |
| Footrest to seat distance (mm) | 360-410 | 360-410 | 360-410 | 360-410 |
| Armrest to seat distance (mm) | 215 | 215 | 215 | 215 |
| Front Location of Armrest Structure (mm) | 310 | 310 | 310 | 310 |
